YouTube / Netflix — High-Level Design

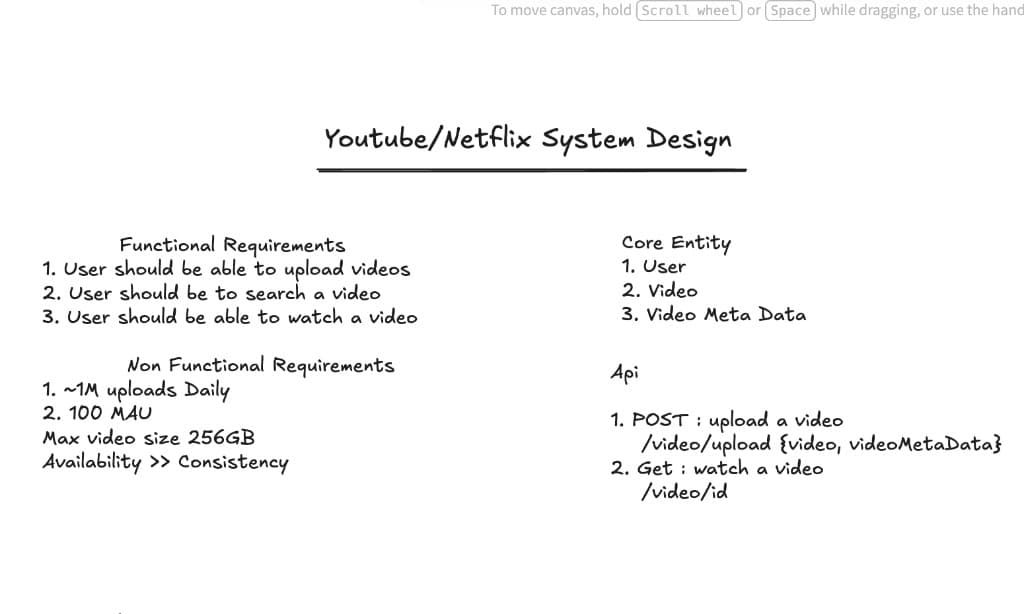

Upload, search, and watch. Scale is ~1M uploads a day, 100M monthly active users, max video size 256GB. Availability beats consistency — a slightly stale search result is fine; the player going down is not. Core entities are User, Video, and Video Metadata. POST /video/upload and GET /video/:id cover the first cut of the API.

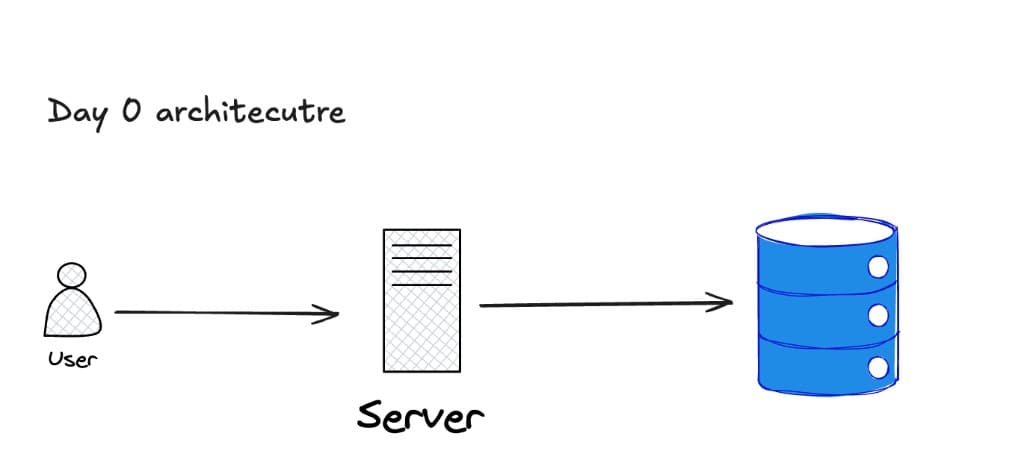

User → one server → one database. Fine for a prototype. It will not survive 100GB uploads, search at 100M MAU, or playback on a phone over 4G.

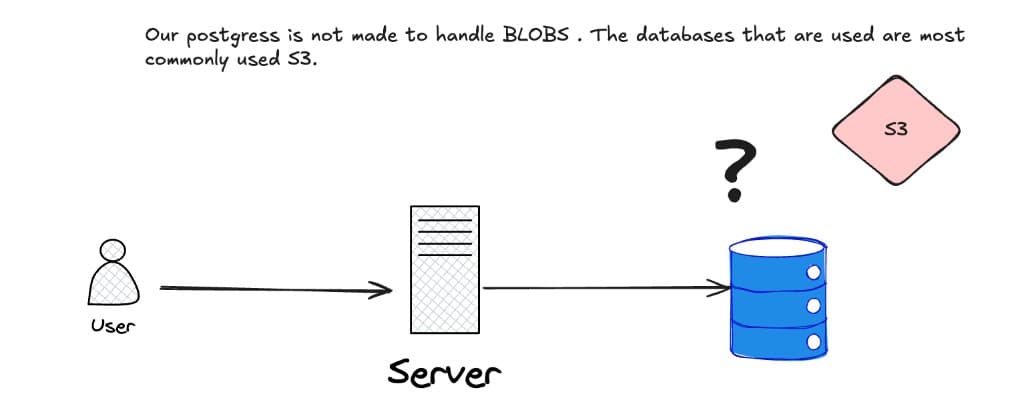

Storing video bytes in Postgres is a non-starter. Object storage (S3) holds the file; the database holds metadata — id, name, description, status, s3URL. The question mark on the DB is the whole point of the next few steps.

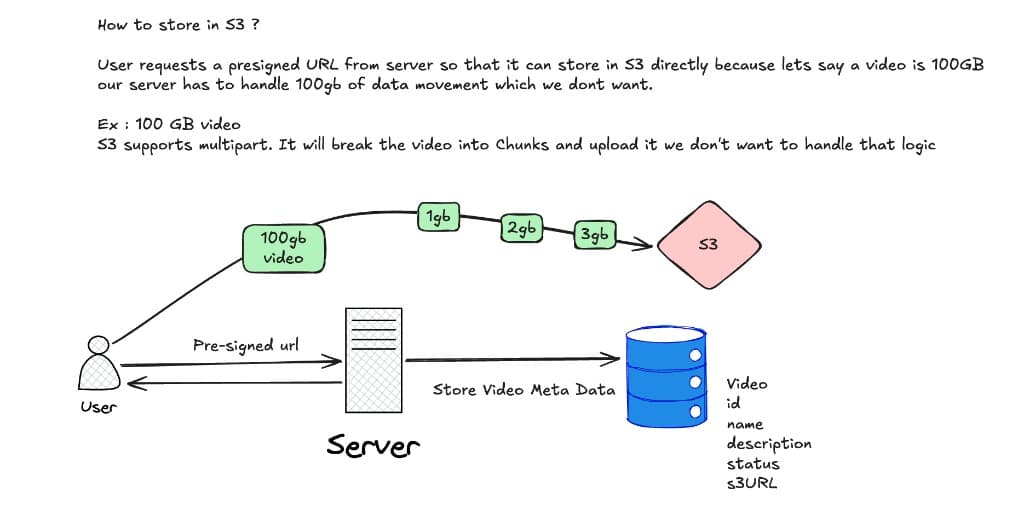

The app server must never proxy a 100GB file. The client asks for a pre-signed URL, then uploads straight to S3. S3 multipart splits that into 1GB-class parts so a dropped connection does not restart from byte zero. The server only writes metadata: video id, name, description, status, s3URL.

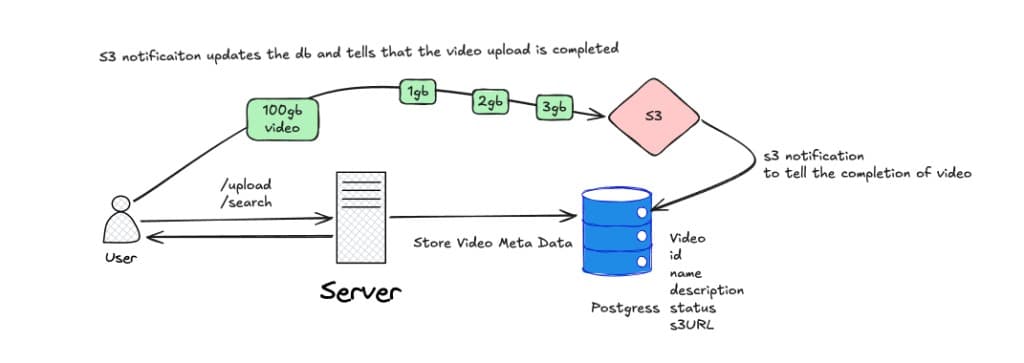

/upload stores metadata first; the bytes go to S3 in chunks. When the object lands, an S3 notification flips status to uploaded. Search and playback should not see a video whose file is still in flight.

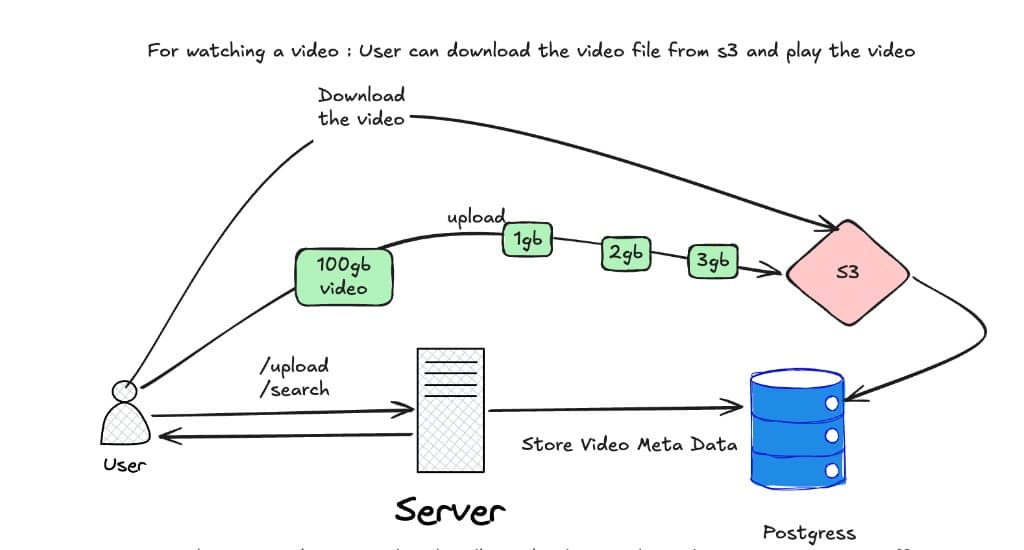

The obvious playback path is “download from S3 and play.” That works for a 10MB clip. It does not work for 100GB: bandwidth, battery, and the user’s data cap all lose. That failure is why we split search from video and stop treating the object as one blob.

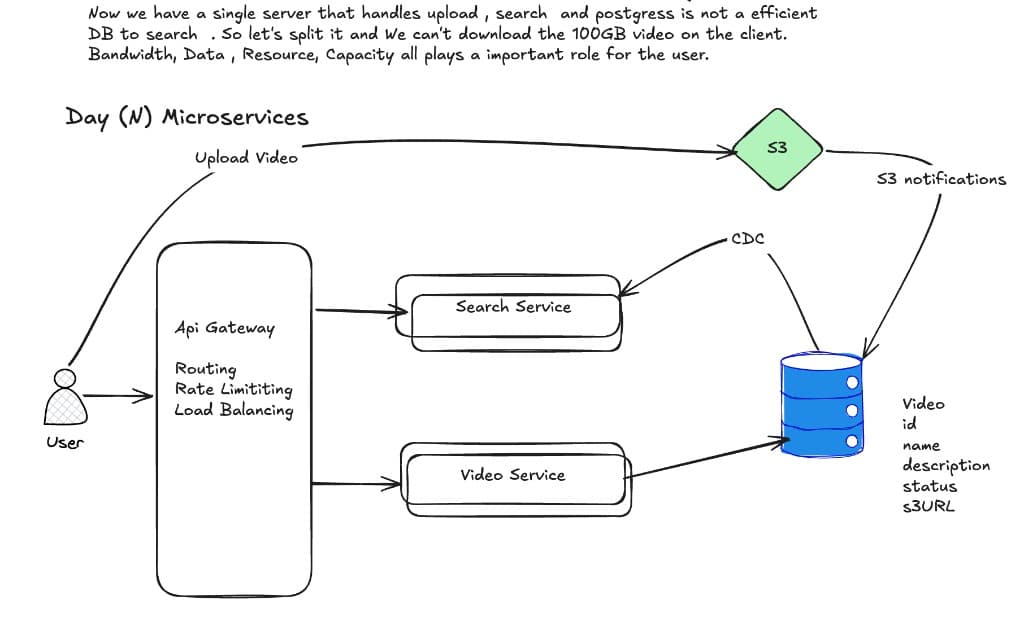

API Gateway (routing, rate limits, load balancing) in front of Search and Video. Uploads still go direct to S3; S3 notifications update the DB. Postgres is a poor search engine, so CDC streams metadata into the Search service. The client never downloads the raw 100GB object.

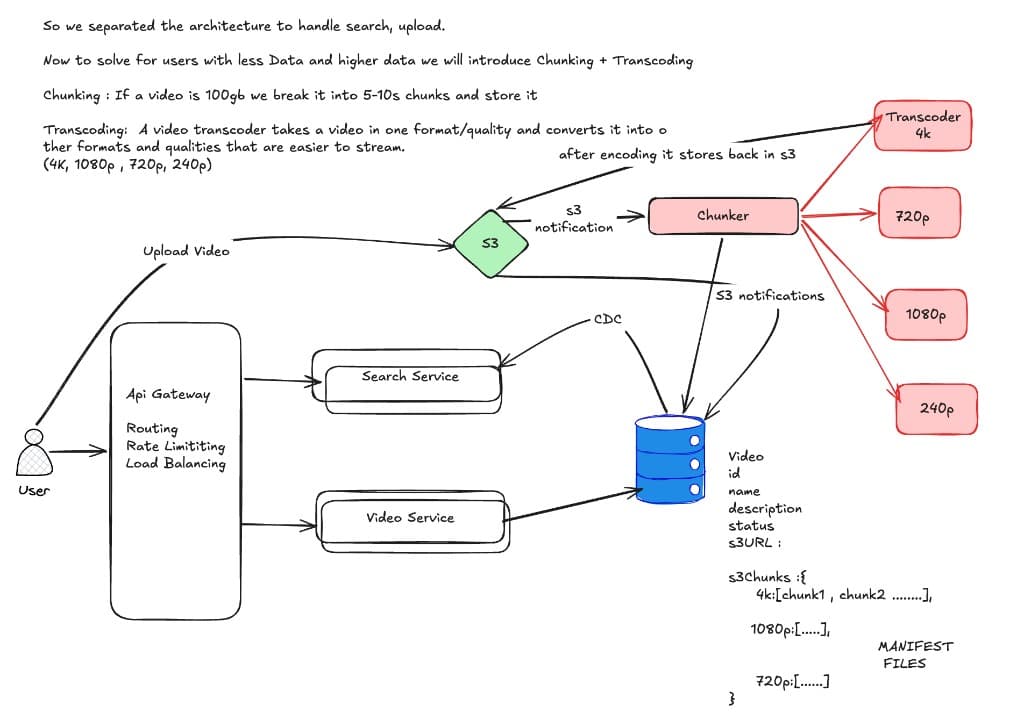

S3 notify → Chunker splits the file into 5–10 second segments → transcoders emit 4K, 1080p, 720p, 240p and write them back to S3. The DB tracks status plus s3Chunks per resolution and the manifest files. One upload becomes many renditions so a slow network can still play.

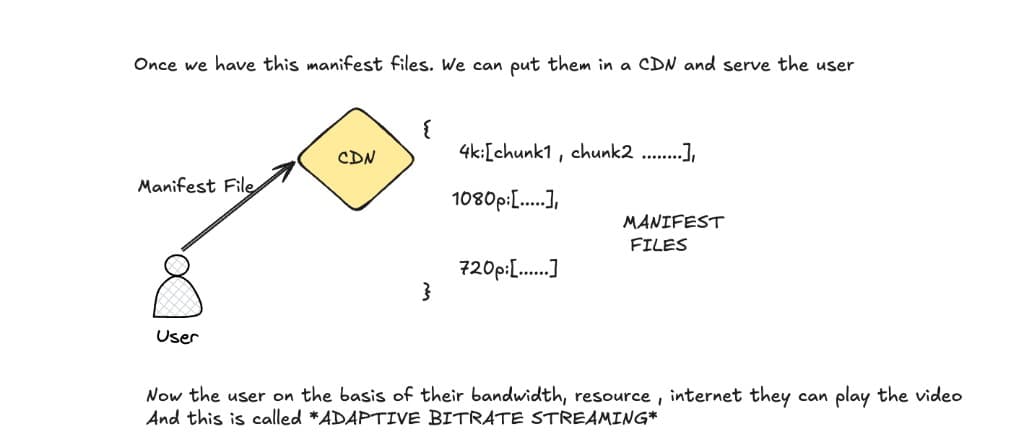

Manifests live on a CDN. The player fetches the manifest, then pulls chunks for the quality the current bandwidth can sustain — 4K on fiber, 720p on LTE, 240p on a bad train. That switch mid-stream is adaptive bitrate streaming.

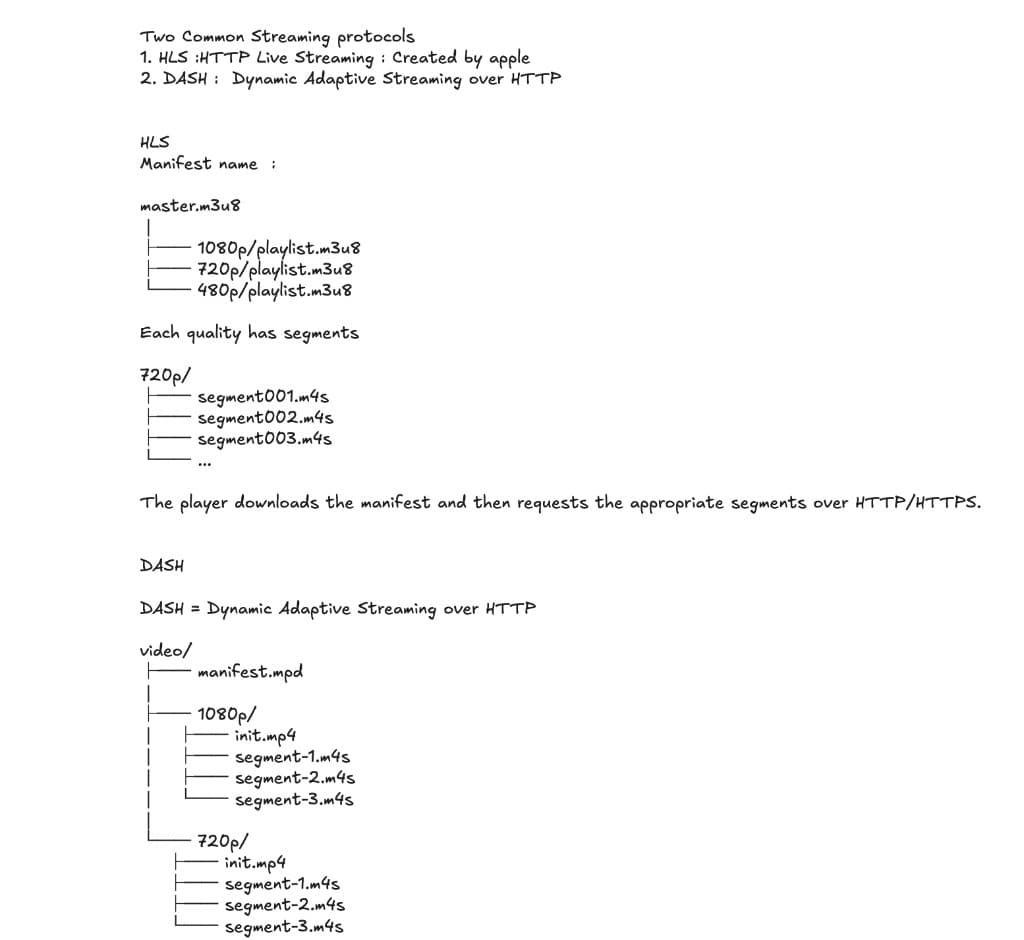

HLS (Apple): master.m3u8 points at per-quality playlists, each a list of .m4s segments. DASH: manifest.mpd plus init.mp4 and segments per resolution. Same idea — HTTP segments the player can swap — different packaging. Transcode once, package into both if you need Safari and everyone else.

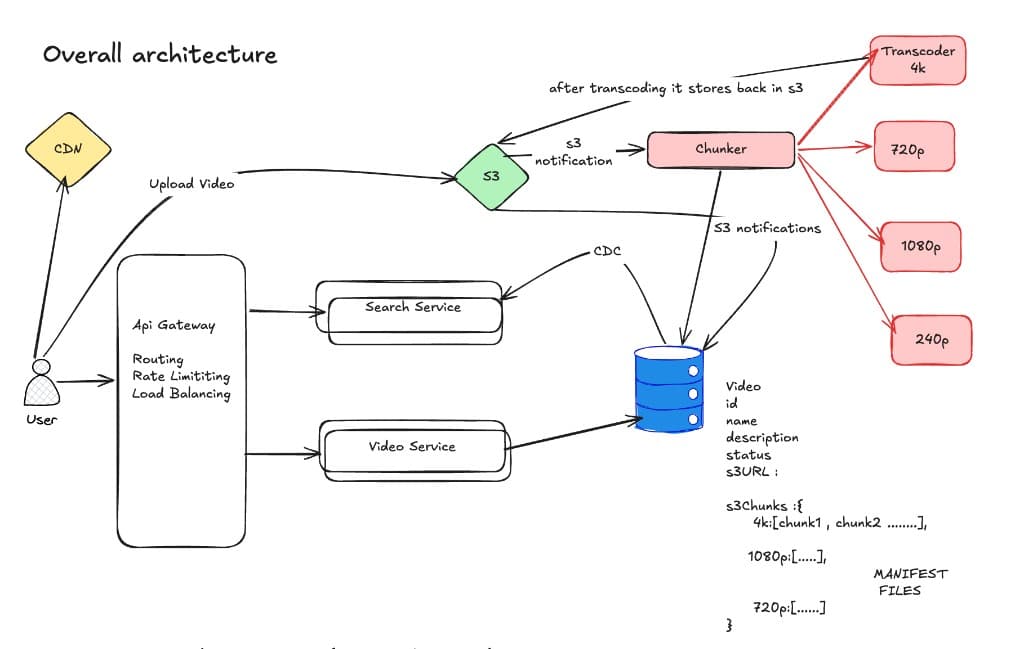

User hits CDN for playback and the gateway for search/video APIs. Upload → S3 → chunker → transcoders → S3 again. Metadata in Postgres; CDC keeps Search current. Manifests and chunks on the CDN close the loop from a 256GB upload to a phone that never downloads more than the next few seconds.

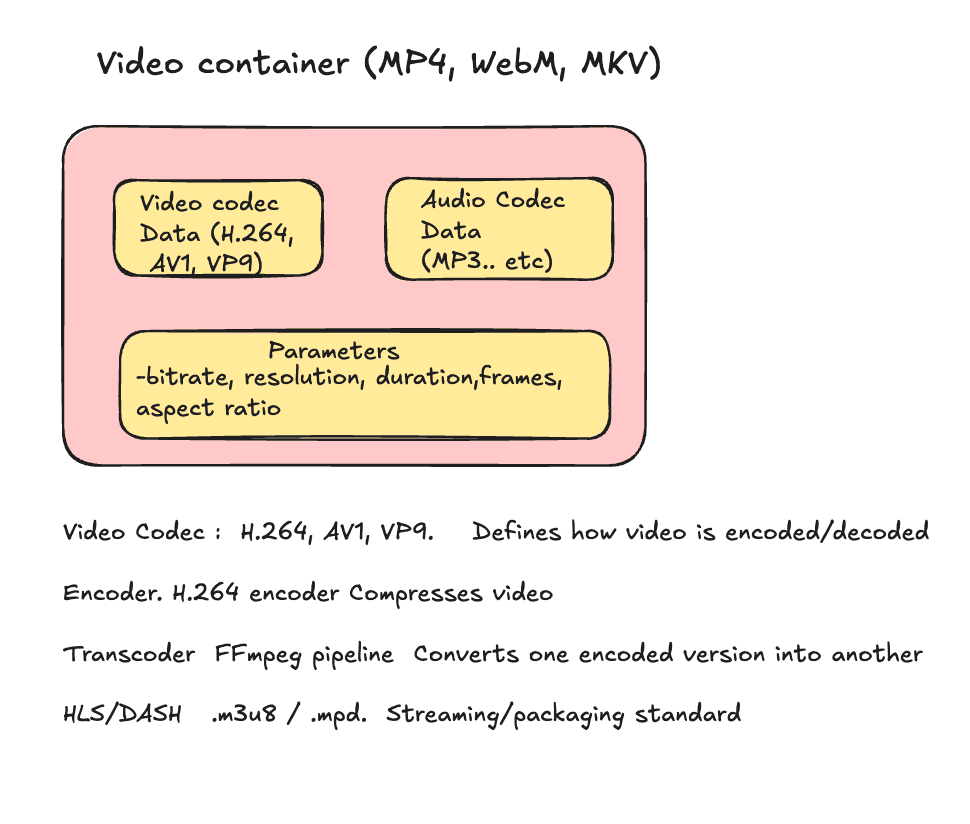

An MP4/WebM/MKV container wraps video codec data (H.264, AV1, VP9), audio, and parameters (bitrate, resolution, duration). A codec defines encode/decode; an encoder compresses; FFmpeg as a transcoder turns one encoded version into the ladder of renditions; HLS/DASH is the packaging standard the player actually speaks.
